Packaging Requirements
| Category | Specification |
|---|---|
| Product | Granules (such as Coffee Beans, Candy and Nuts) |

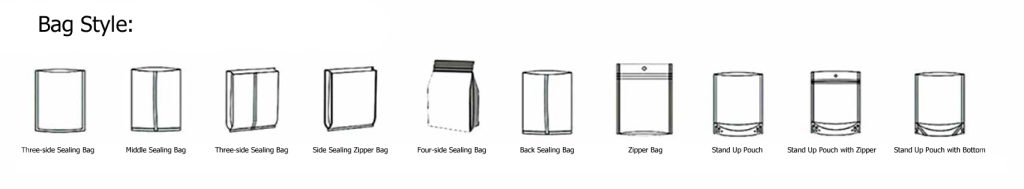

| Bag Shape | Flat Bottom, Four-side Sealing, Stand-up Porch, 3/4-side Sealing, Back Sealing (with Zipper) |
| Packing Size | up to 1kg / 35oz |
| Bag Dimensions | 120mm-300mm/4.7″-11.8″ (Length) 100mm-200mm/3.9″-7.9″ (Width) |
| Key Features | Auto Weighing, Small Footprint, Reasonable Price |
Equipment Features
- Hygiene Compliance
- Food-grade 304 stainless steel contact surfaces
- Automation & Safety
- Auto weighing/packaging with fault alarms
- Transparent plexiglass protection door
- Oil-free vacuum pump (prevents contamination)
- Bag Compatibility
- Most Pre-made Bags with Zipper

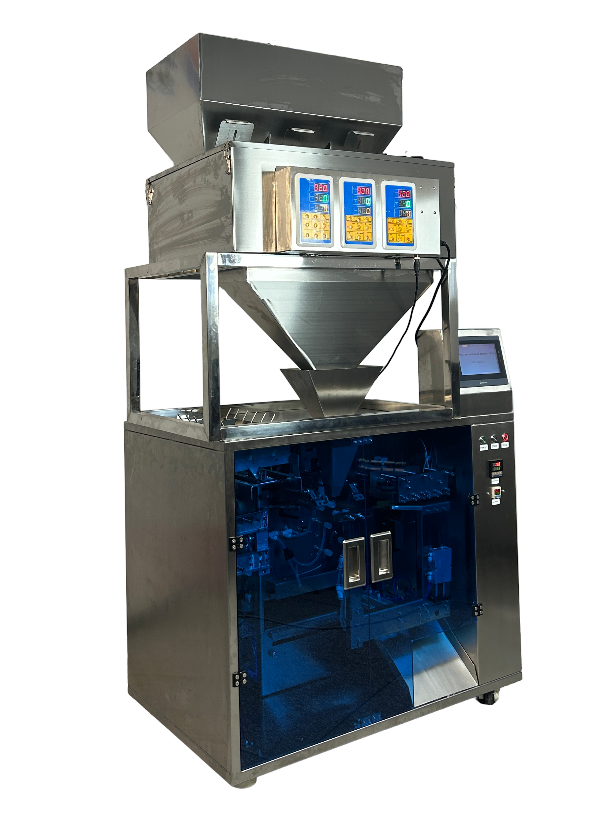

Machine Configuration
| Component | Description |
|---|---|
| Main Units | • Auto 3-head Scale • Granules Feeder • Self-contained steel coding machine |
| Control System | • 10” Touchscreen interface • Digital parameter display • Bag size adjustment |
| Bag Handling | • Bag Hopper • Bag Transfer Station (servo-controlled) • Sensor-activated filling (“No bag no filling”) |
| Filling System | • Sensor-controlled auto refill • Dual 10L/2.6Gallon hoppers (standard) • Accuracy: up to 3g/0.1oz |
| Sealing Station | • Auto thickness adaptation (no manual adjustment) • Shaping motor with touchscreen width control |
| Output System | • Cushioned finished product discharge • Optional conveyor integration for carton packing |
Technical Specifications
| Parameter | Detail |
|---|---|
| Max. Bag Size (Width x Length) | 200mm/7.9″ x 300mm/11.8″ |
| Material | Full 304# stainless steel construction |
| Safety Features | • Motion-sensing auto-shutdown • Fault alarms • Anti-spill protection (improper bag opening) |
| Drive System | Accurate motors for precision movement |
Key Advantages
- ✔️ Low Initial Investment
- ✔️ Accurate Filling (up to 3g)
- ✔️ Nitrogen Flashing (Optional)
- ✔️ Vacuum Packing (Optional)
