THE FULL-STACK SYNERGY: MASTERING AUTOMATED PACKAGING-TO-CASING TRANSITIONS

The Manufacturing Crisis

Great Lakes Industrial Logistics was facing a “final-mile” crisis within their facility. While their upstream filling and primary packaging lines were running at high speeds, the end-of-line casing process remained manual. Eight operators were required per shift to fold boxes, manually group products, and tape cases. This created a massive bottleneck; if two workers called in sick, the entire $2M filling line had to be throttled down by 40%. They needed to bridge the gap between “packaged product” and “shippable case” with zero human intervention.

The Azomak Engineering Intervention

Azomak designed a Unified Case Erecting, Loading, and Sealing Cell that synchronized perfectly with their existing primary packaging output.

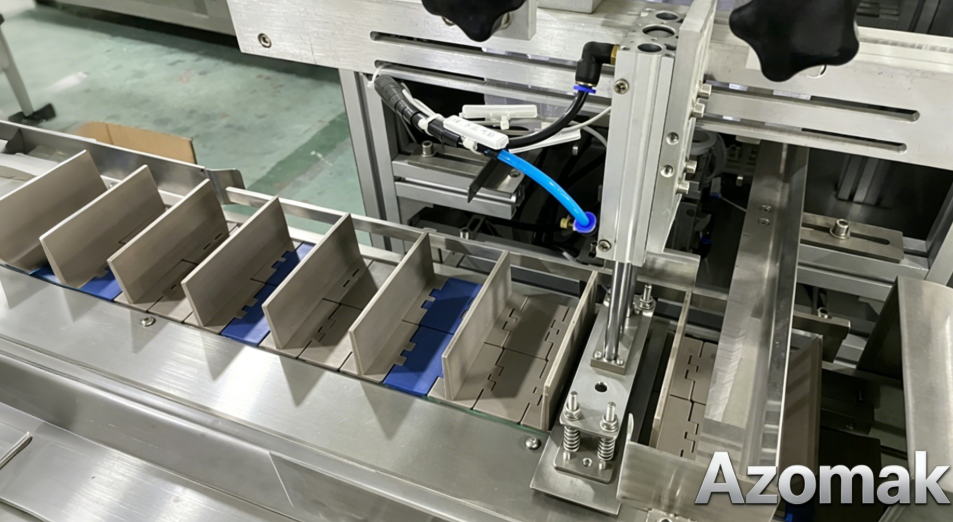

• Smart Infeed Accumulation: Instead of products arriving in a chaotic flow, we engineered a servo-driven “Collator” that groups bags or bottles into the exact matrix (e.g., 3×4 or 4×6) required for the shipping case.

• Robotic Pick-and-Place Precision: We integrated a high-speed Delta Robot equipped with custom-molded vacuum grippers. This ensures that even fragile primary packaging (like thin-film sachets) is handled with a “soft touch,” preventing ruptures during the casing phase.

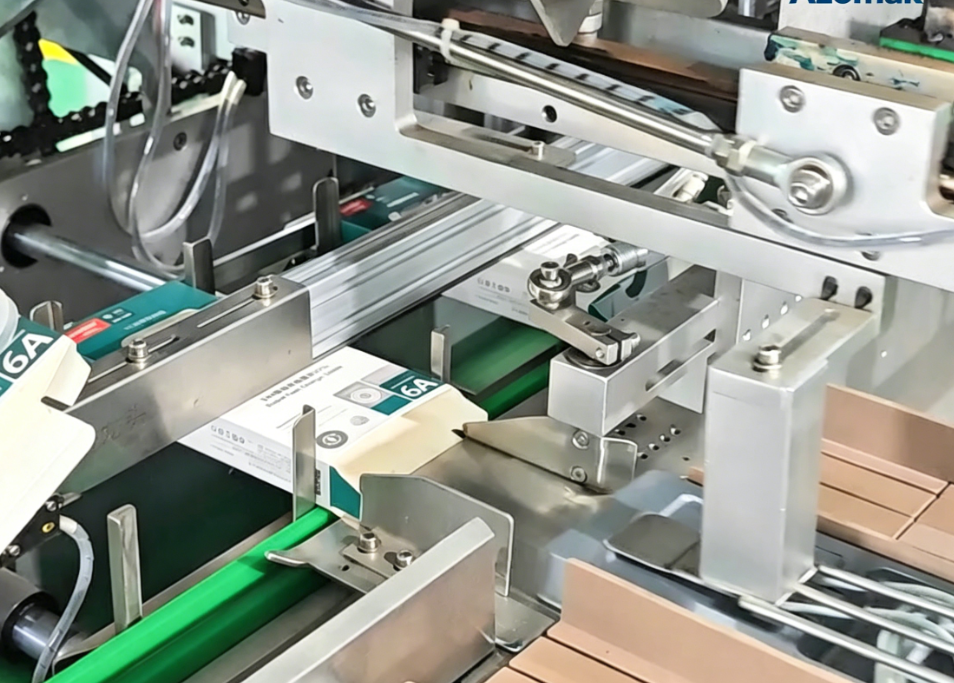

• Integrated Case Erector: The system automatically pulls flat-packed corrugated cardboard, squares it, and seals the bottom—delivering a ready case to the loading station every 6 seconds.
