SEALING THE TRUST: HIGH-SPEED BLISTER SOLUTIONS FOR SENSITIVE FORMULATIONS

The Manufacturing Crisis

Keystone Pharma Solutions, a contract manufacturer based in the heart of Pennsylvania’s pharmaceutical corridor, faced a significant hurdle with their new line of moisture-sensitive stability-tested tablets. Their legacy blister machines used intermittent plate sealing, which caused uneven heat distribution. This resulted in “micro-channeling”—invisible gaps in the seal that allowed humidity to compromise the active ingredients. In a market governed by strict FDA stability protocols, even a 1% failure rate during shelf-life testing could lead to catastrophic product recalls.

The Azomak Engineering Intervention

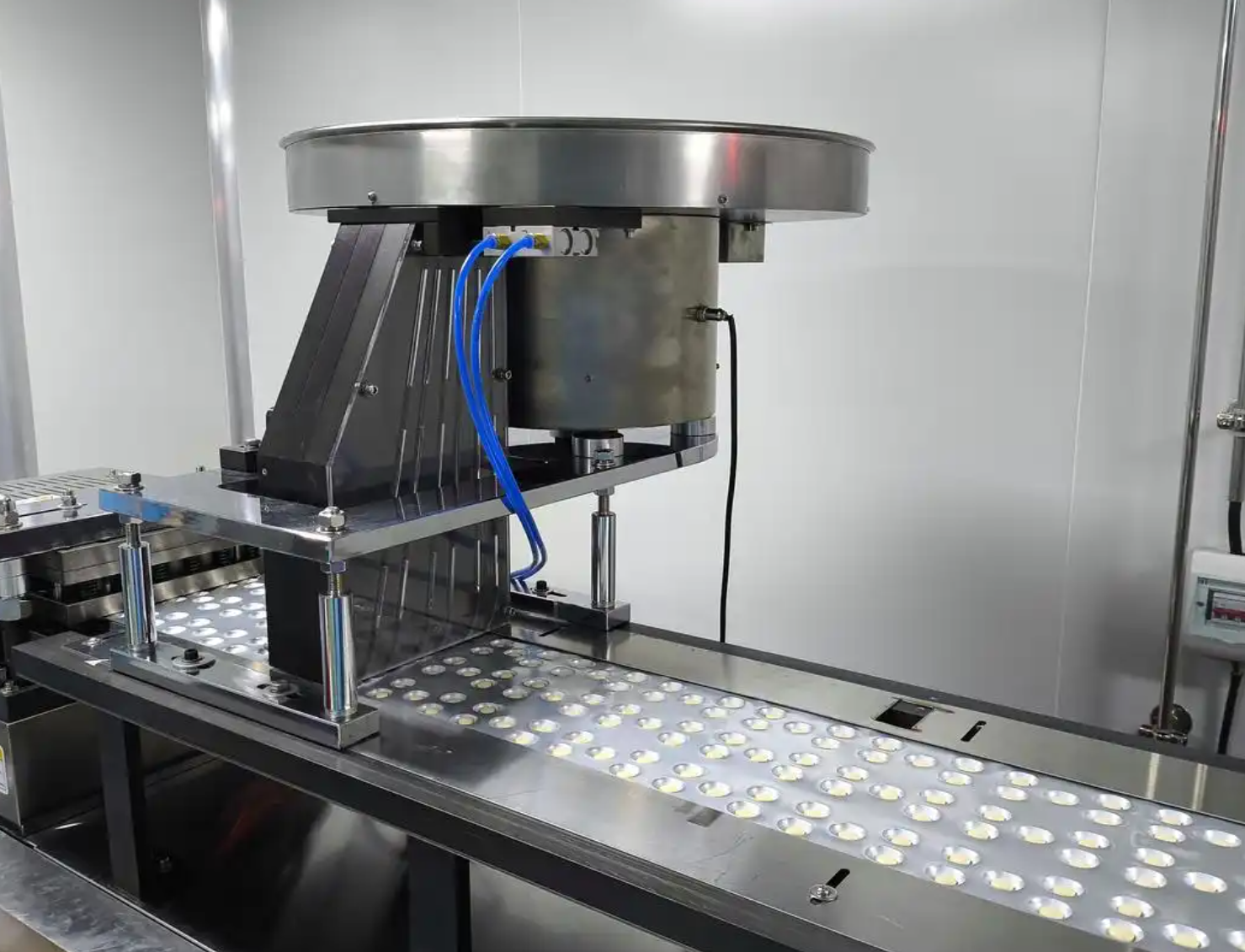

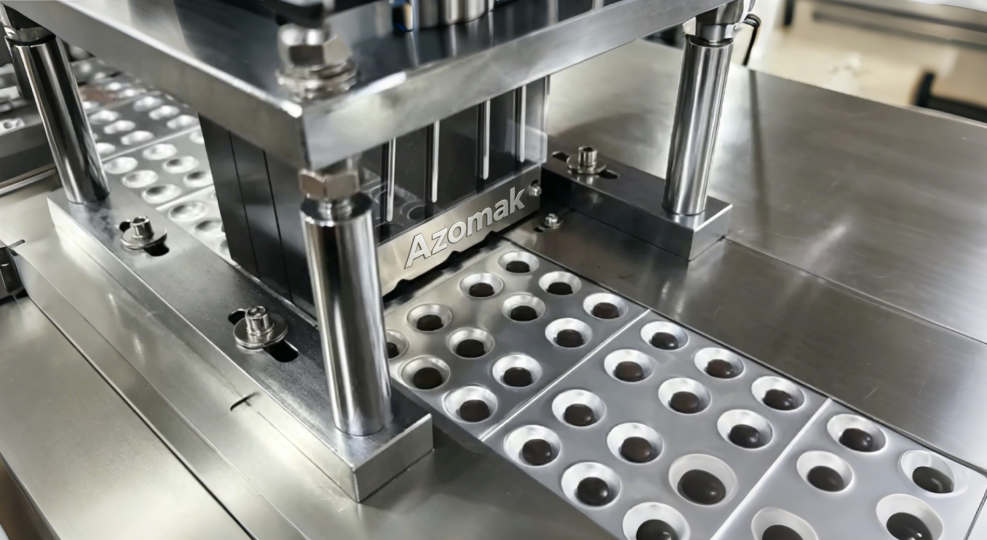

Azomak engineers replaced the outdated system with a Continuous Motion Rotary Blister Packing Line (ALU-PVC / ALU-ALU). This machine was engineered to handle high-barrier materials that are notoriously difficult to seal at high speeds.

• Precision Thermal Mapping: We implemented a multi-zone temperature control system. Instead of heating the entire sealing roller uniformly, the Azomak system adjusts heat across the grid to ensure the edges of the blister cavity receive the exact pressure needed for a hermetic bond.

• Servo-Driven Drum Cold-Forming: For their ALU-ALU (cold-form) requirements, we engineered a servo-driven deep-draw station. This prevents the foil from over-stretching and thinning at the corners, maintaining the full protective barrier of the aluminum.

• Vision-Integrated Reject System: A high-speed industrial camera scans every pocket for pinholes, tablet fragments, or empty cavities at a rate of 200 packs per minute.

Direct Client-Engineer Dialogue

Quality Assurance VP: “We deal with high-value biologics in tablet form. If the seal isn’t 100% consistent across a 10-hour shift, we lose hundreds of thousands of dollars in raw materials. Can your rotary system handle the pressure variance?” Azomak Lead Engineer: “The sealing pressure is no longer a manual adjustment. Our sensors monitor the ‘Nip Pressure’ between the rollers 1,000 times per second. If the material thickness fluctuates by even 5 microns, the servo motor compensates instantly. We don’t just seal; we validate the seal in real-time.” Post-Install Feedback: “The changeover from PVC to ALU-ALU used to take our team half a day. With Azomak’s modular mold system, we’re back in production in 40 minutes. But more importantly, our stability test pass rate is now a perfect 100%.”
